Profilair 20 bar

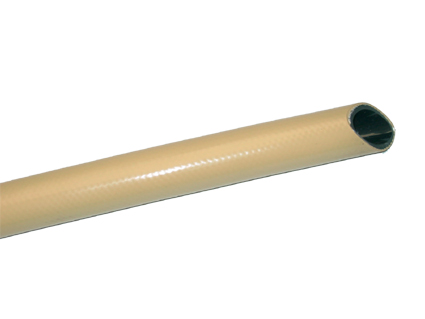

The Profilair air hose is a lightweight pvc hose for medium duty compressed air applications (up to 20 bar).
- Tube: black pvc
- Reinforcement: high tensile polyester fibre
- Cover: beige or black UV resistant pvc
Working pressure and test pressure measured at 23°C.
Applications
Compressed air - Spraying machine - Supply pneumatic machines
Equipment for small material - Passage of industrial gas and air
Various applications
Assembly
|
Diameter (mm) |
Bending radius (mm) |
Weight (g/m) |
Working Pressure (bar) |
Burst Pressure (bar) |
Reference Beige | Reference Back |
Coil length (m) |
| 6 x 12 | 50 | 109 | 20 | 63 | PA06 | PAZ06 | 50 |
| 7 x 13 | 55 | 120 | 20 | 63 | PA07 | PAZ07 | 50 |
| 8 x 14 | 65 | 130 | 20 | 63 | PA08 | PAZ08 | 50 |
| 9 x 15 | 70 | 143 | 20 | 63 | PA09 | PAZ09 | 50 |
| 10 x 16 | 75 | 155 | 20 | 63 | PA10 | PAZ10 | 50 |
| 12,7 x 20 | 90 | 225 | 20 | 63 | PA12 | PAZ12 | 50 |
| 16 x 24 | 125 | 315 | 20 | 63 | PA16 | PAZ16 | 50 |
| 19 x 27 | 150 | 363 | 20 | 63 | PA19 | PAZ19 | 50 |
| 25 x 34 | 195 | 520 | 20 | 63 | PA25 | PAZ25 | 50 |
