AX Dry Cement S&D

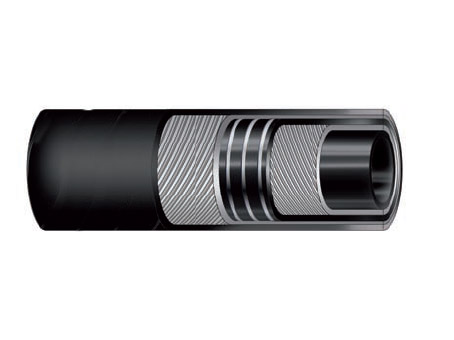

Antistatic NR/SBR suction and delivery hose for abrasive dry media.
- Tube: black smooth anti static NR/SBR rubber
- Reinforcement: high tenacity textile yarn and embedded steel helix
- Cover: black antistatic NR/SBR rubber with cloth impression, abrasion and weathering resistant
Temperature range: -40°C up to +70°C
Abrasion loss of the tube: rubber compound according to DIN 53516 70±5 mm³
Other diameters, pressure ratings and inner tube rubber quality (higher abrasion resistance, light coloured para rubber) available on request.
Applications
Suction and delivery hose for bulk materials, cement, sand, gravel, chalk, lime and other dry abrasive materials. Suitable for silo discharging and on tank trucks.
|
Diameter (mm) |
Weight (g/m) |
WP (bar) |
BP (bar) |
Vacuum |
Bending Radius (mm) |
Ref |
Coil length (m) |
| 51 x 65 | 1.920 | 10 | 30 | 0,9 | 300 | TBX050 | 40 - 61 |
| 65 x 79 | 2.430 | 10 | 30 | 0,9 | 380 | TBX065 | 40 - 61 |
| 76 x 92 | 3.280 | 10 | 30 | 0,9 | 450 | TBX075 | 40 - 61 |
| 90 x 110 | 3.800 | 10 | 30 | 0,9 | 540 | TBX090 | 40 - 61 |
| 102 x 118 | 4.800 | 10 | 30 | 0,9 | 610 | TBX100 | 40 - 61 |
| 110 x 129 | 5.600 | 10 | 30 | 0,8 | 660 | TBX110 | 40 - 61 |
| 115 x 135 | 5.800 | 10 | 30 | 0,8 | 700 | TBX115 | 40 - 61 |
| 127 x 147 | 6.800 | 10 | 30 | 0,8 | 760 | TBX125 | 40 - 61 |
| 152 x 174 | 11.000 | 10 | 30 | 0,8 | 920 | TBX125 | 40 - 61 |
| 203 x 229 | 16.300 | 10 | 30 | 0,7 | 1220 | TBX200 | 40 |
