Storz with shank

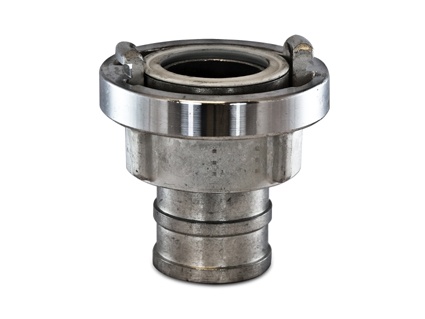

Storz half-coupling with hose shank.

Lug distances(1): D = 31 , C = 66 , B = 89 , A = 133
Alloys: aluminium or Stainless Steel(2).
Profiled seal: NBR
Working pressure: 16 bar (ND205: 10bar)

(1) Most common, other available (see table)
(2) Please contact us

ND Inch For hose
(mm)
Lug dist.
(mm)
DIN Ref Alu
25 1" 25 31 14 301 SZT031025
32 3/4" 19 44 SZT044019
32 1" 25 44 SZT044025
32 1" 1/4 32 44 SZT044032
38 1" 1/2 38 51 SZT052038
52 1" 25 66 SZT066025
52 1" 1/4 32 66 SZT066032
52 1" 1/2 38 66 SZT066038
52 2" 52 66 14 321 SZT066052
52 60 66 SZT066060
65 2" 52 81 SZT081052
65 2" 1/2 65 81 SZT081065
65 70 81 SZT081070
75 2" 52 89 SZT089052
75 2" 1/2 65 89 14 322 SZT089065
75 3" 75 89 SZT089075
75 80 89 SZT089080
90 90 105 SZT105090
100 4" 100 115 SZT115100
110 90 133 SZT133090
110 4" 100 133 SZT133100
110 110 133 14 323 SZT133110
125 5" 125 148 SZT148125
150 6" 150 160 SZT160150
205 205 220 SZT220205
