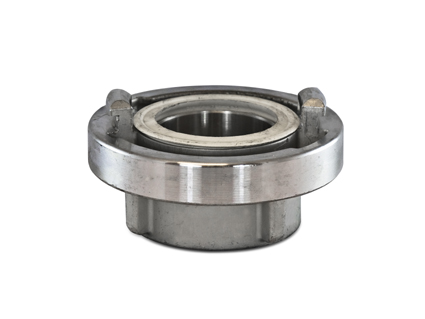

Storz female threaded
Storz half-coupling with female thread. Available with fixed head or swivel.
Lug distances(1): D = 31 , C = 66 , B = 89 , A = 133
Thread: BSP, DIN ISO 228
Alloys: aluminium or Stainless Steel(2).
Profiled seal: NBR
Working pressure: 16 bar (ND205: 10bar)
(1) Most common, other available (see table)
(2) Please contact us
| ND | Inch |
Lug dist. (mm) |
DIN | Ref | Ref Swivel |
| 25 | 1" | 31 | 14 306 | SZV031025 | |
| 32 | 1" | 44 | SZV032025 | ||
| 32 | 1" 1/4 | 44 | SZV044032 | ||
| 38 | 1" | 51 | SZV052025 | ||
| 38 | 1" 1/4 | 51 | SZV052032 | ||
| 38 | 1" 1/2 | 51 | SZV052038 | ||
| 38 | 2" | 51 | SZV052050 | ||
| 52 | 1" | 66 | SZV066025 | ||
| 52 | 1" 1/4 | 66 | SZV066032 | ||
| 52 | 1" 1/2 | 66 | SZV066038 | SZVD066038 | |
| 52 | 2" | 66 | 14 307 | SZV066050 | SZVD066050 |
| 52 | 2" 1/2 | 66 | SZV066065 | ||
| 65 | 2" | 81 | SZV081050 | ||
| 65 | 2" 1/2 | 81 | SZV081065 | ||
| 65 | 3" | 81 | SZV081075 | ||
| 75 | 2" | 89 | SZV089050 | ||
| 75 | 2" 1/2 | 89 | SZV089065 | SZVD089065 | |
| 75 | 3" | 89 | 14 308 | SZV089075 | SZVD089075 |
| 90 | 3" | 105 | SZV105075 | ||
| 100 | 4" | 115 | SZV115100 | SZVD115100 | |
| 100 | 4" | 133 | SZV133100 | SZVD133100 | |
| 110 | 4" 1/2 | 133 | 14 309 | SZV133110 | |
| 125 | 5" | 148 | SZV148125 | SZVD148125 | |
| 150 | 6" | 160 | SZV160150 | SZVD160150 | |
| 165 | 6" | 188 | SZV188150 | ||
| 250 | 10" | 278 | SZV278250 |
